Embarking on a journey with your NauticStar 205 DC is an experience many cherish, but even the most reliable vessels occasionally whisper a plea for attention. When an accessory falters, a light refuses to shine, or the bilge pump remains stubbornly silent, that's when a solid strategy – specifically, using NauticStar 205 DC System Diagnostic Flowcharts – becomes your most valuable tool. Forget frantic guesswork; this approach helps you systematically pinpoint the problem, getting you back to enjoying the water faster and with more confidence.
At a Glance: Key Takeaways for NauticStar 205 DC Troubleshooting
- Empowerment through Understanding: Learn to think like a marine technician, not just react to symptoms.
- Systematic Approach: Diagnostic flowcharts guide you step-by-step from symptom to solution.
- Essential Systems Covered: Focus on common issues in electrical, bilge, and propulsion systems.
- Your Owner's Manual is Gold: Leverage the manual for system overviews and wiring clues.
- Tools of the Trade: A multimeter, test light, and basic hand tools are indispensable.
- Safety First: Always disconnect power and follow marine safety protocols.
- Know Your Limits: Understand when to tackle a repair yourself and when to call in a certified professional.
Decoding the Whispers: Why Flowcharts Make You a Smarter Boat Owner
Think of your NauticStar 205 DC as a beautifully integrated network of systems, each designed to perform specific functions. When one link in that chain breaks, it rarely announces itself with a clear signpost. Instead, you get a symptom: a flickering light, a pump that won't run, a horn that's gone mute. Without a structured approach, you might find yourself replacing parts haphazardly, hoping to stumble upon the fix. This "parts cannon" method is costly, frustrating, and often ineffective.
This is precisely where diagnostic flowcharts shine. They're not just for complex industrial machinery; they're an elegant problem-solving methodology that breaks down a complex issue into a series of simple, logical yes/no questions and actions. For your NauticStar 205 DC, adapting this thinking means you move from a broad symptom ("My light isn't working") to a precise diagnosis ("The fuse for that circuit is blown") with minimal fuss. It's about empowering you to troubleshoot efficiently, understand your vessel more deeply, and ultimately save time and money.
Your NauticStar 205 DC: A Deep Dive into Its Core Systems
While your specific NauticStar 205 DC owner's manual might not feature pre-drawn flowcharts for every conceivable issue, it provides the foundation for creating your own diagnostic pathways. The NauticStar Deck Series manuals (which often cover models like the 203 DC, 223 DC, and 243 DC, sharing many system commonalities with the 205 DC) meticulously detail critical systems. These include:
- Electrical System: The nervous system of your boat, powering everything from navigation lights to your sound system. This is often the source of many troubleshooting challenges due to complex wiring, connections, and multiple components.
- Bilge Pump Systems: Essential for safety, ensuring water doesn't accumulate in your hull. A malfunctioning bilge pump is a critical concern.
- Fuel Systems: Delivering power to your outboard engine. While primarily engine-related, the DC system powers fuel gauges, pumps, and engine control units.
- Navigational Equipment: GPS, fishfinders, depth sounders – all rely on a stable DC power supply.
- Propulsion Controls: Shifters, throttles, and trim/tilt mechanisms often have electrical components.
- Lighting: Interior, exterior, and navigation lights.
Understanding how these systems are described in your owner's manual is the crucial first step. It helps you identify the components involved and their intended function, providing the "nodes" for your diagnostic flowchart.
Building Your Own NauticStar Diagnostic Flowcharts: A Step-by-Step Methodology
You don't need a pre-printed chart for every problem. The true power lies in adopting the diagnostic mindset. Here's how to develop your own systematic troubleshooting approach for your NauticStar 205 DC:
Step 1: Clearly Define the Symptom
This is the start of your flowchart. Be specific. Instead of "something's wrong with the electrical," try:
- "The starboard navigation light isn't turning on."
- "The bilge pump doesn't activate when the switch is pressed."
- "My fishfinder screen is black."
Specificity helps you narrow down the potential systems immediately.
Step 2: Isolate the Suspect System
Based on the symptom, which system is most likely involved?
- Starboard nav light -> Electrical system, specifically the navigation light circuit.
- Bilge pump -> Bilge pump system, electrical supply to the pump.
- Fishfinder -> Electrical system, specifically the accessory circuit for the fishfinder.
Step 3: Consult Your Owner's Manual and Schematics
This step is non-negotiable. Your owner's manual will provide a general overview of the system, its components, and often basic operational checks. For more detailed troubleshooting, wiring diagrams (schematics) are invaluable. They show you exactly how components are wired together, where fuses are located, and the path of power. Accessing specific schematics for your model year, like the 2006 NauticStar 205 DC Schematics, can make an enormous difference in tracing wires and understanding power distribution.
Step 4: Start with the Obvious (and Easiest) Checks
Before grabbing your multimeter, eliminate the simplest possibilities. This forms the initial branches of your flowchart:
- Is the battery charged? A low house battery can cause a cascade of seemingly unrelated electrical issues.
- Is the main battery switch ON? (If applicable to the circuit).
- Are circuit breakers tripped or fuses blown? Visually inspect the fuse panel or breaker array.
- Is the component's switch ON? Simple, but often overlooked.
- Are all connections clean and secure? Loose or corroded terminals are notorious culprits.
Step 5: Trace the Power Path with a Multimeter or Test Light
Once the basics are covered, it's time to measure. This is where your flowchart gets more detailed, asking "Is there voltage here?" or "Is there continuity there?"
- Check for Voltage at the Source: Start closest to the battery (or main distribution panel) for the suspect circuit. Does power leave the fuse or breaker?
- Work Downstream: Follow the wiring path (using your schematic) to the switch, then to the accessory. At each point, verify that power is present on both sides of the component (e.g., input and output of a switch).
- Check for Ground: A good ground connection is just as important as a good positive connection. Use your multimeter to check for continuity between the component's ground wire and the boat's main ground bus.
Step 6: Test Individual Components
If power reaches a component but it's still not working, the component itself might be faulty.
- Direct Power Test: For simple components like a bilge pump or a light bulb, you can often temporarily connect them directly to a known good 12V source (like the battery, with an inline fuse for safety) to see if they operate. Always do this cautiously and with appropriate fusing.
- Continuity Test: For switches or wires, use your multimeter's continuity setting to ensure they're making good contact when activated.
- Resistance Test: For some components (e.g., speaker wires, certain sensors), measuring resistance can indicate if a circuit is open or shorted.
Step 7: Document and Verify
Once you find and fix the problem, document it. Note the symptom, the diagnostic steps you took, the solution, and any parts replaced. This builds a service history for your NauticStar 205 DC and helps for future troubleshooting. Finally, verify the fix by testing the system thoroughly.
Common NauticStar 205 DC System Issues & Conceptual Flowcharts
Let's apply this methodology to some frequently encountered problems on boats like the NauticStar 205 DC. Remember, these are conceptual frameworks – adapt them with your specific manual and observation.
Scenario 1: Bilge Pump Not Working
Symptom: Bilge pump doesn't run when activated by the switch (manual or automatic).
Conceptual Flowchart:
- Start: Bilge Pump Not Working.
- Check Battery Voltage: Is the house battery charged?
- NO: Charge battery, retest.
- YES: Proceed.
- Check Bilge Pump Fuse/Breaker: Is it blown/tripped? (Consult manual for location).
- YES: Replace fuse/reset breaker. Retest. If it blows again, there's a short.
- NO: Proceed.
- Check Bilge Pump Switch (at helm): Does it click? Does it feel responsive? Is there power to the switch? Is there power out of the switch when activated? (Use test light/multimeter).
- NO Power Out: Faulty switch or wiring to switch.
- YES Power Out: Proceed.
- Check Power at Bilge Pump Wires: Disconnect pump. Use multimeter to check for 12V at the positive wire (and good ground) when switch is ON.
- NO Power at Pump: Break in wiring between switch and pump. Trace wiring using schematic.
- YES Power at Pump: Proceed.
- Test Pump Directly: With wires disconnected, connect pump leads directly to a known good 12V battery (with an inline fuse!).
- Pump Runs: Wiring or float switch issue (if automatic).
- Pump Does NOT Run: Faulty bilge pump. Replace pump.
Scenario 2: Navigation Lights Not Illuminating
Symptom: Navigation lights (bow or stern) do not turn on when switch is activated.
Conceptual Flowchart:
- Start: Nav Lights Not Working.
- Check Battery Voltage: Is the house battery charged?
- NO: Charge battery, retest.
- YES: Proceed.
- Check Nav Light Fuse/Breaker: Is it blown/tripped?
- YES: Replace fuse/reset breaker. Retest. If it blows again, suspect short.
- NO: Proceed.
- Check Nav Light Switch: Is there power to the switch? Is there power out of the switch when activated?
- NO Power Out: Faulty switch or wiring to switch.
- YES Power Out: Proceed.
- Check Bulbs (if replaceable): Are they burnt out? (Visually inspect, or swap with a known good bulb).
- YES (Bulb Faulty): Replace bulb.
- NO (Bulb OK): Proceed.
- Check Power at Light Socket/Fixture: Use multimeter/test light at the contacts in the light fixture.
- NO Power at Fixture: Break in wiring between switch and light. Check connections, trace wiring.
- YES Power at Fixture: Faulty fixture (corroded contacts, internal wiring) or a subtle bulb issue. Replace/repair fixture.

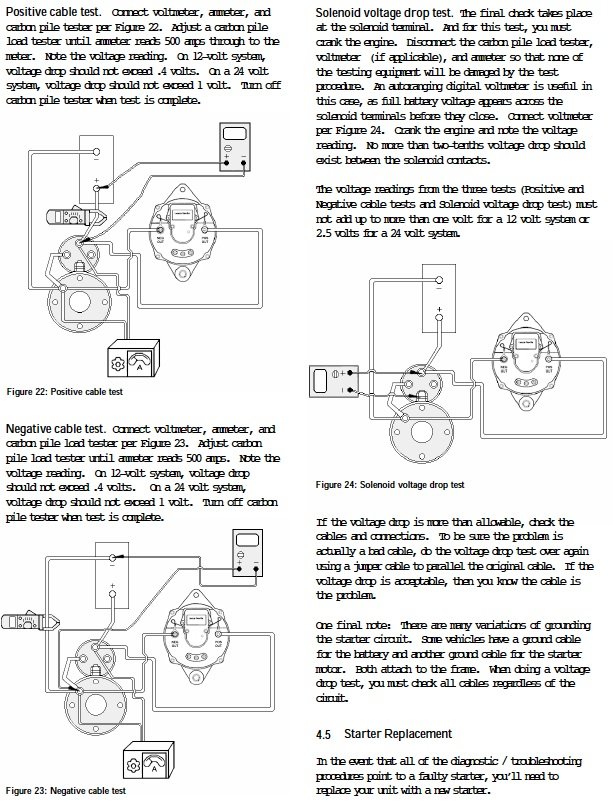

Scenario 3: Engine Cranks, But Won't Start (Focus on DC Electrical)
Symptom: Turn the key, engine spins (cranks), but it doesn't "catch" and fire up. (This assumes good battery voltage; if it doesn't crank, that's a different starting point).
Conceptual Flowchart (DC Electrical Specific):
- Start: Engine Cranks, No Start.
- Confirm Strong Cranking: Is the engine cranking vigorously or sluggishly?
- Sluggish: Weak battery or poor battery connections. Address first.
- Vigorous: Proceed with other electrical checks.
- Check Kill Switch/Lanyard: Is it correctly in place and activated?
- NO: Correct kill switch. Retest.
- YES: Proceed.
- Check Engine Main Fuse/Breaker: Many outboards have a main fuse near the battery or on the engine itself (consult engine manual).
- YES (Blown): Replace. If it blows again, significant electrical issue.
- NO: Proceed.
- Check Key Switch Output: Does the key switch send power to the engine's ignition system when turned to "RUN" or "START"? (Often a red/purple wire).
- NO Power: Faulty key switch or wiring to it.
- YES Power: This points away from basic DC electrical and towards fuel delivery (no fuel), ignition coils (no spark), or engine sensor issues. At this point, you're transitioning from generic DC diagnostics to specific engine system troubleshooting, likely requiring the engine's service manual.
Scenario 4: Electronics (Fishfinder/GPS) Not Powering On
Symptom: My fishfinder, GPS, or other accessory unit is completely dead.
Conceptual Flowchart:
- Start: Electronic Unit Not Powering On.
- Check Battery Voltage: Is the house battery charged?
- NO: Charge battery, retest.
- YES: Proceed.
- Check Unit's Dedicated Fuse/Breaker: Most electronics have an inline fuse on their power cable or are on a dedicated breaker at the helm. Is it blown/tripped?
- YES: Replace fuse/reset breaker. Retest. If it blows again, there's a short in the unit or its wiring.
- NO: Proceed.
- Check Main Helm Breaker/Accessory Switch: Is the general accessory switch/breaker at the helm ON? Is power flowing through it?
- NO Power Out: Faulty switch/breaker.
- YES Power Out: Proceed.
- Check Power at Unit's Power Connector: Disconnect the unit's power cable from the back of the device. Using a multimeter, check for 12V between the positive and negative pins of the cable (not the unit itself).
- NO Power at Cable: Break in wiring from helm to unit. Trace wiring. Check for corroded connections.
- YES Power at Cable: Proceed.
- Test Unit Power Input: Reconnect the power cable. If the unit still doesn't power on, the unit itself is likely faulty. Try testing the unit on a different known good 12V source if possible (e.g., direct to battery with fuse).
- Unit Powers On: Problem is with boat's wiring or connector.
- Unit Still Dead: Faulty electronic unit. Consider manufacturer repair or replacement.
Your Essential Diagnostic Toolkit for the NauticStar 205 DC
You don't need a professional workshop to start troubleshooting. A few key tools will equip you for most common DC system diagnostics:
- Digital Multimeter (DMM): Your number one diagnostic friend. Essential for measuring voltage (DC Volts), continuity (to check for broken wires or good connections), and resistance (Ohms). Look for one with an auto-ranging feature for ease of use.
- 12V Test Light: A simple, quick way to determine if power is present at a fuse, switch, or component. Less precise than a multimeter but very fast for initial checks.
- Wire Strippers/Cutters: For making temporary test connections or performing basic repairs.
- Crimpers and Marine-Grade Connectors: For properly repairing or replacing wiring connections. Always use heat-shrink connectors for marine environments.
- Spare Fuses: Keep a variety of common ATC/ATO blade fuses that match those in your NauticStar's fuse panel.
- Electrical Tape/Heat Shrink Tubing: For insulating and protecting connections.
- Corrosion Inhibitor/Dielectric Grease: To protect electrical connections from the marine environment.
- Flashlight/Headlamp: Good lighting is crucial in tight, dark spaces.
When to Call a Pro: Knowing Your Limits
While diagnostic flowcharts empower you, they also help you recognize when a problem is beyond your scope.
- Repeated Blown Fuses/Tripped Breakers: This indicates a persistent short circuit, which can be dangerous and difficult to trace without specialized equipment.
- Smoke, Burning Smells, or Hot Wires: Immediately shut down power! These are signs of a serious electrical fault that could lead to fire.
- Engine-Specific Electrical Issues: While basic battery and starter checks are fine, deep dives into engine control units (ECUs), specific sensors, or complex charging system components often require manufacturer-specific diagnostic tools and expertise.
- Lack of Confidence/Safety Concerns: If you're unsure, uncomfortable, or feel safety might be compromised, it's always best to consult a certified marine technician. They have the training, tools, and experience to diagnose and repair complex issues safely.
The Best Diagnostic Tool: Preventative Maintenance
The most effective "flowchart" is often the one you never have to use because you prevented the problem in the first place. Regular preventative maintenance for your NauticStar 205 DC's DC systems will dramatically reduce troubleshooting headaches:
- Battery Care: Keep terminals clean, tight, and protected with corrosion inhibitor. Check water levels in lead-acid batteries regularly.
- Wiring Inspections: Periodically inspect visible wiring for chafe, cracks, corrosion, or loose connections.
- Fuse/Breaker Panel Checks: Ensure all fuses are snug and breakers aren't warm to the touch. Keep the panel clean and dry.
- Ground Connections: Verify that all major ground connections (battery, engine block, main bus bars) are clean and secure. Poor grounds are a huge source of intermittent electrical gremlins.
- Component Testing: Before each outing, quickly test all critical systems (bilge pump, navigation lights, horn).
By proactively maintaining your NauticStar 205 DC, you're not just preventing breakdowns; you're building a deeper understanding of your boat, making any future diagnostic work significantly easier.
Taking Charge of Your Boat's Reliability
Adopting a diagnostic flowchart mindset for your NauticStar 205 DC transforms you from a bewildered boat owner to an informed, proactive captain. It's about approaching problems with logic and evidence, not panic. While specific flowcharts for every scenario may not be readily available, the structured thinking they represent empowers you to develop your own systematic approach. Gather your tools, consult your manual, and start with the simple checks. You'll quickly discover that many common issues on your NauticStar 205 DC are well within your power to diagnose and resolve, giving you greater independence and peace of mind on the water.
